Why buy the ZYYX+ 3D Printer?

> It is Reliable

Auto Leveling

The build plate is probed before every print and the print plane is adjusted during the print in order to keep your models safely on the plate.

Print Monitoring

The ZYYX+ monitors the print and if something goes wrong it pauses the print automatically. You can then identify the problem and in some cases even resume printing.

ZYYX Filament Monitor

The ZYYX+ detects if you run out of filament or if the filament gets tangled. If so, it pauses the print so you can fix the problem and resume printing.

filament_monitor_2

Maintenance Made Easier

The design of the print head allows for an easy access of the feeder mechanism for keeping it in top condition.

extruder_flipped

The Reliable ZYYX Extruder

Filament jams are rare with the ZYYX extruder: The hot end is thermally isolated from the feeder mechanism by a custom designed “hot end holder” in PEEK plastic. The filament is also isolated by a PTFE tube all the way down to the melt zone of the hot end.

ZYYX_extruder_re

The ZYYX Build Plate

The surface characteristics of the ZYYX build plate is designed for optimal adhesion between model and plate. Together with the closed chamber and our proABS this reduces warp when printing ABS.

build_plate_large

It is Easy to Use

Professional Grade Print Software

The ZYYX+ comes with the Simplify3D Integrated 3D Printing Software, an all-in-one software suite with fully customized profiles for the ZYYX+ and ZYYX Filaments.

ZYYX Build Plate System

The Auto Leveling functionality of the ZYYX+ eliminates the need for tedious adjustments of the mechanics before every print. Furthermore; to make it easy for you to remove the finished model the build plate can be lifted out of the printer. This is facilitated by the use of magnets which hold the build plate in position during the print.

remove_buildplate_140714

Professional Prints

State-of-the-art Algorithms

The motion planner algorithm and the extrusion algorithms are optimized for removing vibrations and improving retractions. The result is smoother surfaces and a higher quality of finer details.

openrc2

Robust Design

The moving parts around the print-head are all aluminum, which increases stability and reduces vibrations. This will improve the print quality as well as extending the lifetime of the printer.

aluminium_holder

State-of-the-art Print Fan

The powerful print fan will cool the plastic at the extrusion point to prevent curling. Furthermore; the print fan speed can be adjusted in Simplify3D to tune the cooling power to different filament types.

printfan_2

Enclosed Chamber

The enclosed printing space keeps the print environment draught free and maintains a stable temperature in the build chamber. This will keep your prints free from tensions and other print defects. Together with the ZYYX build plate and the ZYYX proABS this reduces warp when printing ABS.

computer_fan

It is Quiet and Fume Free

Fume Free

The enclosed chamber with its negative pressure will contain any odour. The outgoing air then passes through an active carbon filter to remove any fumes.

fume_free

Quiet

The optimzed motion algorithms, the robust design and the enclosed chamber keeps the sound to a minimum.

emclosed_printstability

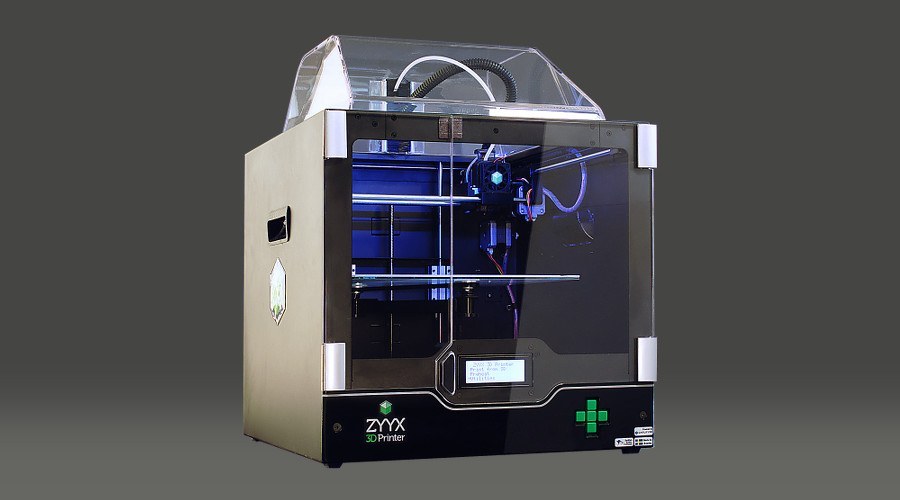

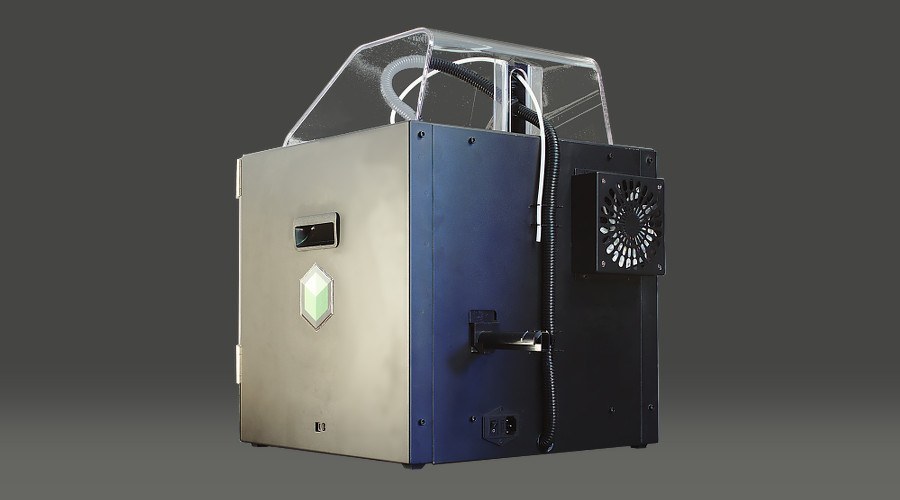

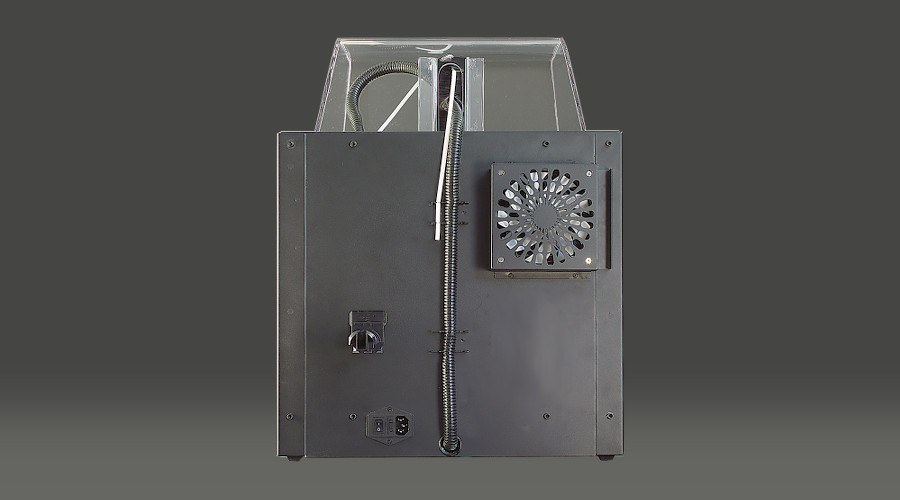

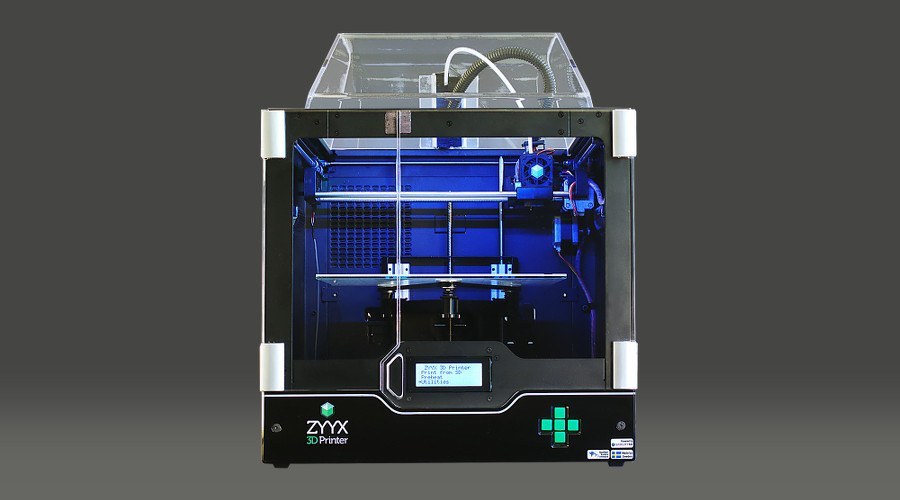

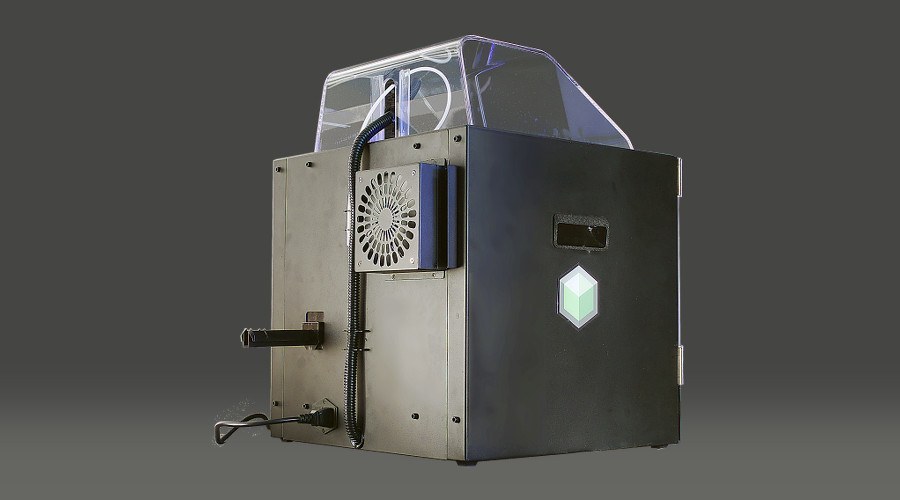

Product Pictures

Technical specification

Print Technology Fused Filament Fabrication(FFF)
Build Volume 265x225x195 mm
Filament diameter 1.75 mm
Nozzle diameter 0.4 mm
Max Resolution 50 microns layer thickness, 11 microns XY positioning
Speed up to 200mm/s print speed
Printing temperature 100-265 Degrees Celsius
Filament type PLA, ABS, and TPU are supported by ZYYX profiles. ABS sizes may be limited due to the heavy material shrinkage.
Interfaces SD Card, USB for firmware updates

Stepper Motor type 1.8° Step angle, 1/16 micro stepping
Build Plate Glass build-plate with ZYYX 3D Print Sheet top layer
Firmware Custom Sailfish Open Source FW
Desktop Software Simplify3D
Computer Requirements Intel Pentium 4 or higher processor, 4 GB or more of RAM, Windows Vista or later (32- or 64-bit), MacOS X 10.7 or later, Ubuntu Linux 14.04 LTS or later. OpenGL 2.0 capable system
Supported file types STL, X3G, 3MF
Product size 43x54x45,5(WxHxL) cm
Product weight 19 kg
